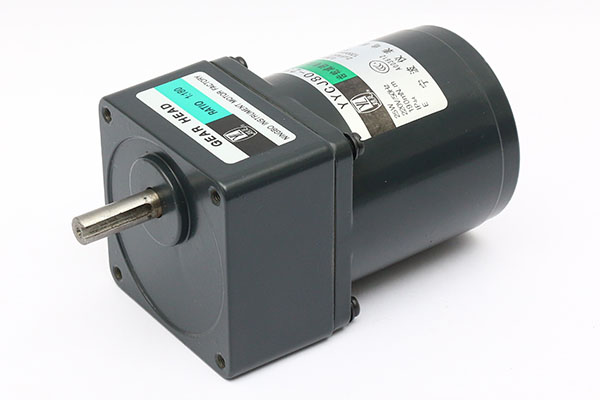

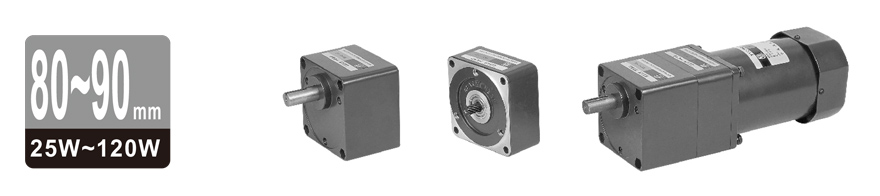

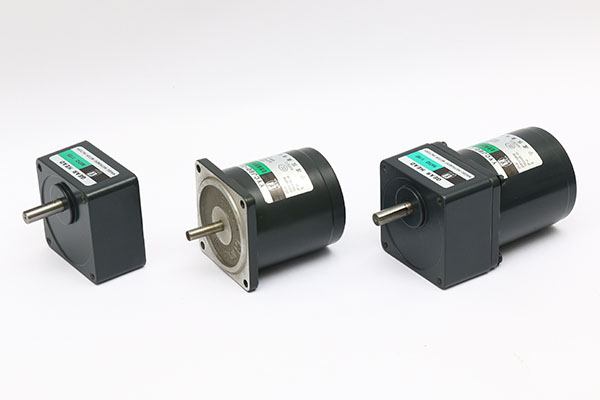

寧波儀表電機廠專業生產"越靈"品牌減速電機

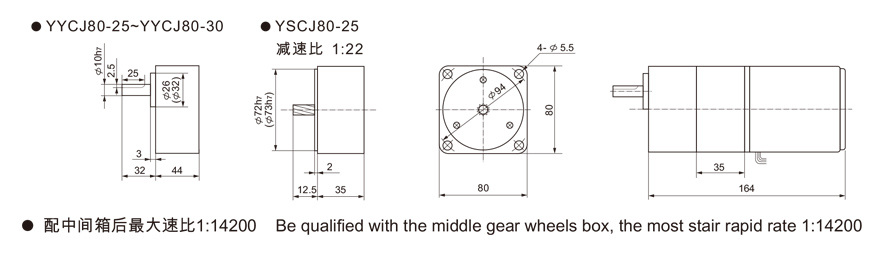

外形尺寸
電機參數
| 型號 | 級數 | 功率 | 電壓 | 頻率 | 電流 | 起動轉距 | 額定轉距 | 額定轉速 | 電容 |
| Type | No.of | Power | Voltage | Frequency | Current | Starting torque | Rated torque | Rated speed | Capactor |
| P | W | V | Hz | A | mN.m(g.cm) | mN.m(g.cm) | r/min | μF/V Ac | |
| YYCJ80-25 | 4 | 25 | 110/220 | 50/60 | 0.52/0.26 | 108(1100) | 190(1930) | 1200/1500 | 8/250-2/450 |
| YYCJ80-30 | 4 | 30 | 110/220 | 50/60 | 0.66/0.32 | 134(1366) | 235(2395) | 1200/1500 | 10/250-2.5/450 |

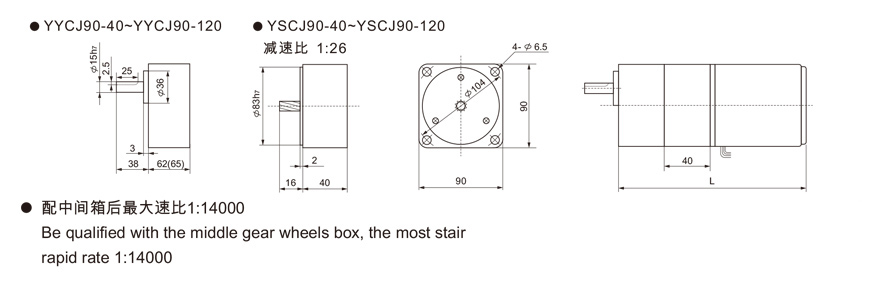

外形尺寸
| 功率 Power | 40W | 60W | 90W | 120W |
| L | 240 | 240 | 250 | 260 |
電機參數
| 型號 | 級數 | 功率 | 電壓 | 頻率 | 電流 | 起動轉距 | 額定轉距 | 額定轉速 | 電容 |
| Type | No.of | Power | Voltage | Frequency | Current | Starting torque | Rated torque | Rated speed | Capactor |
| P | W | V | Hz | A | mN.m(g.cm) | mN.m(g.cm) | r/min | μF/V Ac | |
| YYCJ90-40 | 4 | 40 | 110/220 | 50/60 | 0.7/0.35 | 215(2200) | 294(3000) | 1300/1500 | 12/250-2/450 |
| YYCJ90-60 | 4 | 60 | 110/220 | 50/60 | 1.2/0.6 | 343(3500) | 441(4500) | 1300/1500 | 15/250-3.5/450 |
| YYCJ90-90 | 4 | 90 | 110/220 | 50/60 | 1.4/0.7 | 490(5000) | 670(6750) | 1300/1500 | 20/250-5/450 |
| YYCJ90-120 | 4 | 120 | 110/220 | 50/60 | 2.2/1.1 | 784(8000) | 900(9174) | 1300/1500 | 30/250-8/450 |
